Choosing the right 2 post lift dimensions is not only about checking whether the lift can physically fit inside your garage.
You also need enough space for the vehicle to enter, the doors to open, the lift arms to operate, technicians to work around the vehicle, and the raised vehicle to remain safely below the ceiling.
For preliminary planning, most standard 2 post lifts fall within the following dimensional ranges:
| Measurement | Typical Planning Range |
|---|---|
| Overall Lift Width | 10–13 ft / 3.0–4.0 m |
| Drive-Through Width | 8–11 ft / 2.4–3.3 m |
| Column Height | 9–15 ft / 2.7–4.6 m |
| Maximum Lifting Height | 6–7.5 ft / 1.8–2.3 m |
| Practical Garage Bay Width | About 12–15 ft / 3.7–4.6 m |
| Ceiling Height | Usually 10–15 ft+ / 3.0–4.6 m+ |
| Lift Capacity | Model-specific |
| Concrete Requirement | Model-specific |
These dimensions are for preliminary planning only. The final width, height, anchor layout, concrete requirement and vehicle compatibility must be confirmed from the technical drawing of the selected lift.
Send us your:
- Garage width
- Ceiling height
- Vehicle type
- Maximum vehicle weight
Spaceplus can help you determine a suitable 2 post lift size and layout.

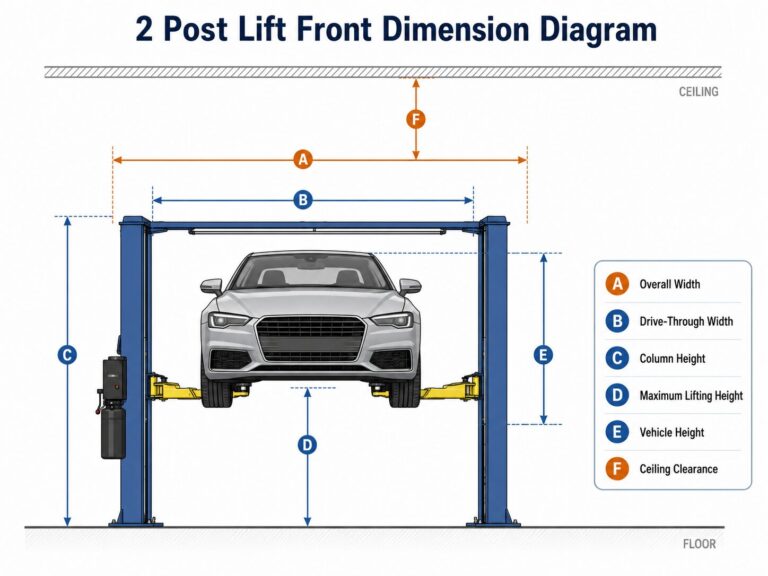

2 Post Lift Dimension Diagram
Before comparing lift models, it is important to understand the different dimensions used in technical drawings.
A 2 post lift should ideally be evaluated from both the front view and the top view.
Front View Measurements
The front-view diagram should identify:
- Overall lift width
- Column height
- Drive-through width
- Vehicle width
- Maximum lifting height
- Raised vehicle height
- Required ceiling clearance
Recommended labels on the image:
A — Overall Width
B — Drive-Through Width
C — Column Height
D — Maximum Lifting Height
E — Vehicle Height
F — Ceiling Clearance

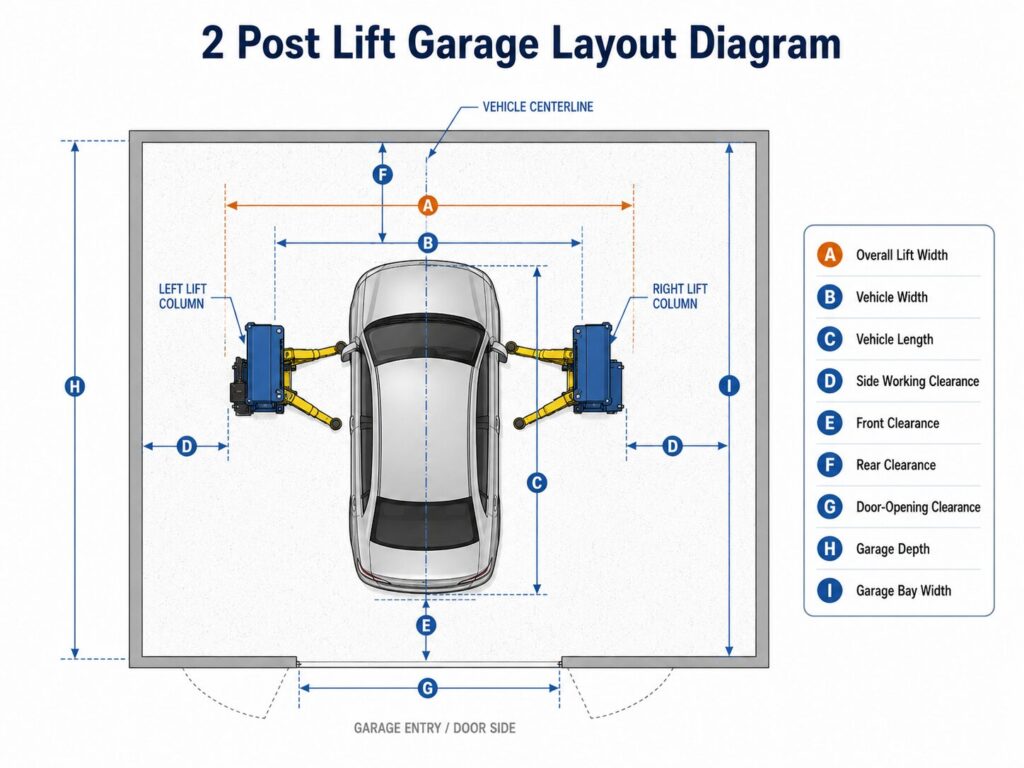

Top View Measurements
The top-view layout should identify:
- Left and right lift columns
- Distance between columns
- Vehicle centerline
- Vehicle width
- Vehicle length
- Side working space
- Vehicle door-opening clearance
- Front clearance
- Rear clearance
- Garage entrance position
This layout view is especially important because a lift can technically fit inside a garage while still leaving too little room for practical vehicle positioning or daily operation.
How Wide Is a 2 Post Lift?
Most standard 2 post car lifts are approximately 10–13 ft (3.0–4.0 m) wide overall.
However, buyers should not use only the overall width when deciding whether a lift fits their garage.
There are four different width measurements to consider.
1. Overall Lift Width
Overall width is measured from the outside edge of one lift column to the outside edge of the opposite column.
Typical planning range:
10–13 ft / 3.0–4.0 m
This measurement determines the minimum physical footprint required for the lift structure.
2. Inside Column Width
Inside column width is the clear space between the two lift columns.
This dimension affects:
- Vehicle positioning
- Door opening
- Arm access
- Vehicle width compatibility
A wider inside-column distance can make daily vehicle positioning easier, but it also increases the total garage width required.
Always check the actual technical drawing of the lift model.
3. Drive-Through Width
Drive-through clearance is the usable width through which the vehicle enters the lift.
A common planning range is approximately:
8–11 ft / 2.4–3.3 m
Drive-through clearance is particularly important for:
- SUVs
- Pickup trucks
- Vans
- Wide passenger vehicles
A lift may have a relatively wide overall footprint but still offer a narrower practical drive-through opening.
4. Recommended Garage Bay Width
The garage should normally be wider than the lift itself.
Extra room may be required for:
- Vehicle doors
- Technician movement
- Lift-arm positioning
- Wall clearance
- Control equipment
- Tool cabinets
- Maintenance access
For preliminary planning, a garage bay of approximately 12–15 ft wide may provide a more practical working environment for many standard 2 post lifts.
The actual requirement depends on the selected lift and how the garage will be used.
Quick Width Comparison
| Width Measurement | Typical Planning Range |
| Overall Lift Width | 10–13 ft |
| Drive-Through Width | 8–11 ft |
| Practical Garage Bay Width | About 12–15 ft |
| Side Working Clearance | Project-specific |
Can a 2 Post Lift Fit in a 10-Foot-Wide Garage?
A 10-ft-wide garage may be too narrow for many standard 2 post lifts once column width and practical working clearance are considered.
Some compact models may fit tighter spaces, but buyers should not rely only on the building width.
Check:
- Exact lift overall width
- Inside column spacing
- Vehicle width
- Door-opening requirements
- Distance to walls
Not Sure Whether Your Garage Is Wide Enough?
Send your garage width and vehicle dimensions.
How Tall Is a 2 Post Lift?
A common mistake is treating column height, lifting height and required ceiling height as the same measurement.
They are different.
1. Column Height
Column height is the physical height of the two lift posts.
A typical planning range is:
9–15 ft / 2.7–4.6 m
Different lift structures require different column heights.
For example:
- Floorplate lifts are often more suitable for lower ceilings.
- Overhead lifts generally require taller columns because the crossbeam is installed above the vehicle.
2. Maximum Lifting Height
Lifting height describes how high the lift can raise the vehicle.
Typical range:
6–7.5 ft / 1.8–2.3 m
The required lifting height depends on how the lift will be used.
A professional workshop may prioritize greater underbody working clearance, while a residential user may not always require the maximum possible lifting height.
3. Required Garage Ceiling Height
The required ceiling height depends on more than the lift column.
It must account for:
- Lift structure
- Vehicle height
- Vehicle lifting height
- Overhead beam
- Garage door
- Lighting
- Pipes or ducts
- Safety clearance
A useful preliminary planning relationship is:
Required Ceiling Height ≈ Vehicle Height + Required Raised Clearance + Structural/Safety Allowance
This is only a planning concept.
The final ceiling requirement must always be confirmed using the selected lift drawing and the height of the tallest vehicle expected to use the lift.
Ceiling Height by Vehicle Type
Passenger Cars
Sedans are generally easier to accommodate because of their lower roof height.
A lower-ceiling workshop may therefore have more model options when the lift is mainly used for passenger cars.
SUVs
SUVs increase the required overhead space.
Check:
- Vehicle roof height
- Lift arm position
- Maximum lifting height
- Garage door track
Pickup Trucks
Pickup trucks may require both:
- Greater ceiling height
- Higher lifting capacity
Long-wheelbase vehicles should also be checked against arm reach and lift-point positions.
Vans and Commercial Vehicles
Vans may require significantly more overhead clearance than passenger cars.
A heavy-duty 2 post lift with taller columns and a wider layout may be necessary.
2 Post Lift Layout Dimensions
The lift itself is only one part of the garage layout.
A practical 2 post lift layout should also consider how the vehicle enters, where it stops and how people move around it.
Main Layout Measurements
The following dimensions should be checked:
Garage Width
Must accommodate:
- Lift columns
- Vehicle
- Door opening
- Working clearance
Garage Depth
Must accommodate:
- Vehicle length
- Front clearance
- Rear clearance
- Garage door
- Workbench or equipment where applicable
Column Position
The columns should be positioned so that the vehicle can reach the correct lifting points without interfering with:
- Walls
- Doors
- Structural columns
- Storage
- Workshop equipment
Vehicle Centerline
The vehicle should approach the lift in a predictable position.
Misalignment can make arm positioning more difficult.
Front Clearance
Space may be required in front of the vehicle for:
- Vehicle positioning
- Technician movement
- Equipment
- Opening the hood
Rear Clearance
Rear clearance may be needed for:
- Vehicle access
- Work around the vehicle
- Garage-door operation
Door-Opening Clearance
For passenger vehicles, especially when using symmetrical lifts, check whether the driver can open the vehicle doors comfortably after positioning the car.
2 Post Lift Layout Dimensions in Feet
For quick preliminary planning:
| Layout Item | Typical Reference |
| Lift Overall Width | 10–13 ft |
| Drive-Through Width | 8–11 ft |
| Practical Garage Bay Width | 12–15 ft |
| Column Height | 9–15 ft |
| Lifting Height | 6–7.5 ft |
| Garage Depth | Vehicle length + working clearance |
| Front Clearance | Project-specific |
| Rear Clearance | Project-specific |
How Much Space Do You Need for a 2 Post Lift?
A 2 post lift requires more space than its equipment footprint.
The garage should provide enough room for:
- The lift itself
- The vehicle
- Vehicle entry
- Vehicle-door opening
- Lift-arm operation
- Working space
- Safe clearance from walls
- Ceiling clearance
2 Post Lift Space Requirements
| Space Requirement | Typical Planning Reference | Why It Matters |
| Lift Overall Width | 10–13 ft | Physical lift footprint |
| Drive-Through Width | 8–11 ft | Vehicle entry |
| Garage Bay Width | About 12–15 ft | Working and door-opening room |
| Column Height | 9–15 ft | Must fit below ceiling |
| Ceiling Height | Usually 10–15 ft+ | Raised vehicle clearance |
| Garage Depth | Vehicle + working space | Vehicle positioning |
| Side Clearance | Model/site-specific | Daily operation |
| Concrete | Model-specific | Safe anchoring |
How Deep Should the Garage Be?
There is no universal minimum garage depth for every 2 post lift.
The correct depth depends on:
- Vehicle length
- Vehicle position relative to the columns
- Front working space
- Rear working space
- Garage door
- Workbench or storage
A compact sedan requires less depth than a long-wheelbase pickup truck.
Before purchase, measure the longest vehicle that is likely to use the lift.
Can a 2 Post Lift Fit in a Home Garage?
Yes, but the garage must first be checked for:
- Width
- Ceiling height
- Garage-door position
- Vehicle height
- Vehicle weight
- Concrete slab
- Electrical supply
- Working clearance
Low residential ceilings are often the main limitation.
A floorplate model or lower-column configuration may be better suited to some residential garages.
For a broader look at vehicle-storage options for residential spaces, see: Car Storage Lift for Garage
2 Post Lift Dimensions by Lift Type
Different 2 post lift designs have different space requirements.
The following table provides a quick comparison.
| Lift Type | Overall Width | Column Height | Drive-Through | Typical Best Fit |
| Symmetrical | 10–12 ft | 11–14 ft | 8–10 ft | SUVs, pickups, larger vehicles |
| Asymmetrical | 10–12 ft | 11–14 ft | 8–10 ft | Passenger cars and light vehicles |
| Overhead | 10–13 ft | 12–15 ft | 8–11 ft | Taller workshops |
| Floorplate | 10–12 ft | 9–12 ft | 8–10 ft | Lower-ceiling garages |
| Heavy-Duty | 11–14 ft+ | 12–16 ft+ | 9–12 ft | Vans and commercial vehicles |
These dimensions are planning ranges, not final Spaceplus model specifications.
Symmetrical 2 Post Lift Dimensions
A symmetrical lift generally positions the columns directly opposite each other.
The vehicle is positioned so that its center of gravity is correctly balanced between the posts.
Typical preliminary dimensions:
- Overall width: 10–12 ft
- Column height: 11–14 ft
- Drive-through width: 8–10 ft
- Lifting height: about 6–7 ft
Best For
Often considered for:
- SUVs
- Pickup trucks
- Larger passenger vehicles
- Vehicles with a more centrally positioned center of gravity
The correct vehicle positioning and lifting points must always follow the lift and vehicle manufacturer requirements.
Asymmetrical 2 Post Lift Dimensions
Asymmetrical lifts use different arm geometry and/or column orientation to position the vehicle differently within the lift.
One practical benefit can be improved door-opening clearance for many passenger vehicles.
Typical planning dimensions:
- Overall width: 10–12 ft
- Column height: 11–14 ft
- Drive-through width: 8–10 ft
- Lifting height: about 6–7 ft
Best For
Common applications include:
- Passenger cars
- Crossovers
- Light vehicles
- Garages where door access is important
Overhead 2 Post Lift Dimensions
An overhead lift routes cables and/or hydraulic lines above the vehicle.
This keeps the floor between the columns relatively clear.
Typical planning dimensions:
- Overall width: 10–13 ft
- Column height: 12–15 ft
- Drive-through width: 8–11 ft
- Lifting height: 6–7.5 ft
Best For
Overhead lifts may be suitable for:
- Professional workshops
- Taller garages
- High-frequency service environments
- Users who prefer a clear floor between the posts
Ceiling height must be checked carefully.
Floorplate 2 Post Lift Dimensions
Floorplate lifts route some system components across a protected plate at floor level.
This allows the columns to be shorter because there is no overhead crossbeam.
Typical planning dimensions:
- Overall width: 10–12 ft
- Column height: 9–12 ft
- Drive-through width: 8–10 ft
- Lifting height: about 6–7 ft
Best For
Often considered for:
- Residential garages
- Lower-ceiling workshops
- Buildings where overhead clearance is limited
The floor plate creates an obstruction that vehicles and technicians must cross.
Floorplate vs Overhead 2 Post Lift
The correct comparison should focus on layout rather than assuming one design is automatically stronger or more stable.
| Factor | Floorplate Lift | Overhead Lift |
| Ceiling Requirement | Lower | Higher |
| Floor Between Columns | Raised floor plate | Clear |
| Hose/Cable Routing | Near floor level | Above vehicle |
| Best Fit | Low-ceiling garages | Taller workshops |
| Vehicle Entry | Crosses floor plate | Clear floor path |
| Main Planning Concern | Floor obstruction | Overhead clearance |
Lifting capacity, stability and price should be compared at the individual model level rather than judged only from whether the lift is floorplate or overhead.
2 Post Lift Dimensions by Vehicle Type
The largest vehicle expected to use the lift should normally be used when planning dimensions.
Sedan
For passenger cars, focus on:
- Door-opening space
- Arm reach
- Vehicle lifting points
- Inside column width
An asymmetrical lift may be attractive when easier door access is important.
SUV
For SUVs, pay particular attention to:
- Vehicle height
- Vehicle weight
- Ceiling height
- Column height
- Drive-through width
Do not assume that every standard passenger-car lift is suitable for every SUV.
Pickup Truck
Pickup trucks may require:
- Greater lifting capacity
- Wider drive-through clearance
- Longer arm reach
- Greater wheelbase compatibility
- More ceiling height
Long-wheelbase pickups should be checked carefully against the lift’s arm configuration.
Van or Commercial Vehicle
Commercial vehicles may require:
- Heavy-duty lift capacity
- Wider column spacing
- Higher ceiling
- Taller lift structure
- Greater vehicle clearance
If large vans or commercial vehicles are part of the project, provide their exact dimensions and gross vehicle weight before selecting the lift.
Concrete Requirements for a 2 Post Lift
The concrete foundation is a critical part of 2 post lift installation.
There is no single concrete thickness that should be treated as correct for every 2 post lift.
Concrete requirements depend on:
- Lift capacity
- Column baseplate
- Anchor type
- Anchor spacing
- Concrete strength
- Slab reinforcement
- Vehicle load
- Lift manufacturer requirements
Check These Concrete Conditions
Slab Thickness
Confirm the required slab thickness from the selected lift’s foundation or installation drawing.
Concrete Strength
The required concrete strength should be specified by the lift manufacturer or project engineer.
Reinforcement
Some installations may require specific reinforcing conditions.
Existing Cracks
Do not place anchors in unsuitable cracked or damaged areas without technical assessment.
Expansion Joints
Lift columns and anchors should not be positioned incorrectly relative to slab joints.
Edge Distance
Anchors require sufficient distance from slab edges and openings.
Slab Condition
Check for:
Damage
Voids
Weak concrete
Previous drilling
Embedded services
Concrete Age
New concrete should reach the required strength before the lift is anchored and loaded.
Important: Never install a 2 post lift using only a generic online recommendation for concrete thickness. Follow the foundation and anchor requirements of the selected model.
For the complete installation procedure, see: 2 Post Lift Installation Steps
Measurements to Confirm Before Installation
Before ordering or installing a 2 post lift, confirm the following measurements.
Garage Measurements
- Garage width
- Garage depth
- Clear ceiling height
- Garage-door height
- Garage-door track position
- Distance to walls
- Column location
- Lighting or pipe obstructions
Vehicle Measurements
- Vehicle length
- Vehicle width
- Vehicle height
- Wheelbase
- Vehicle weight
- Lifting points
Lift Measurements
- Overall width
- Column height
- Inside column width
- Drive-through clearance
- Lifting height
- Arm reach
- Baseplate dimensions
- Anchor pattern
Floor Conditions
- Concrete thickness
- Concrete strength
- Slab cracks
- Expansion joints
- Anchor locations
Installation scope and cost can vary significantly depending on site conditions.
How to Choose the Right 2 Post Lift Size
Use the following seven-step process before selecting a lift.
Step 1: Measure Your Garage Width
Measure the usable width, not only the wall-to-wall building dimension.
Consider:
- Columns
- Storage
- Pipes
- Electrical panels
- Doors
Step 2: Measure Clear Ceiling Height
Measure from the finished floor to the lowest obstruction.
This may be:
- Ceiling
- Beam
- Garage-door track
- Light fixture
- Pipe
- Ventilation duct
Step 3: Measure Your Largest Vehicle
Use the largest vehicle likely to use the lift.
Record:
- Length
- Width
- Height
- Weight
- Wheelbase
Step 4: Determine Required Lift Capacity
Choose a lift with sufficient rated capacity for the vehicles you plan to lift.
Do not select the lift using dimensions alone.
Step 5: Choose Overhead or Floorplate
Choose based on:
- Ceiling height
- Floor preference
- Vehicle type
- Workshop environment
Step 6: Confirm Concrete Requirements
Do not purchase the lift until the slab requirements have been checked.
For an existing garage, inspect whether the existing concrete is suitable.
Step 7: Request the Technical Drawing
Before installation, obtain the exact technical drawing showing:
- Overall dimensions
- Column spacing
- Anchor layout
- Power requirements
- Vehicle compatibility
- Concrete requirements
This is more reliable than planning only from generic online dimension ranges.
Send Your Garage Dimensions Before You Order
Provide:
- Garage width
- Garage depth
- Ceiling height
- Vehicle type
- Vehicle weight
Spaceplus 2 Post Car Storage Lift
Spaceplus provides 2 post car storage lifts for residential garages, workshops, car storage facilities and other vehicle-lifting applications.
A suitable lift should be selected according to:
- Available garage width
- Ceiling height
- Vehicle dimensions
- Required lifting capacity
- Garage use
- Concrete conditions
Instead of selecting a lift only by rated load, Spaceplus can help evaluate whether the dimensions and layout match your available space.
View Spaceplus 2 Post Car Storage Lift
Also Exploring Other Storage Lift Options?
For projects that require a broader range of vehicle-storage configurations: Car Storage Lift Solutions
For residential and private garages: Car Storage Lift for Garage
Frequently Asked Questions
Most standard 2 post lifts are approximately 10–13 ft wide overall, with column heights around 9–15 ft and drive-through clearances of approximately 8–11 ft. Actual dimensions vary by lift type and capacity.
A typical overall width is approximately 10–13 ft. The actual drive-through opening is usually narrower, commonly around 8–11 ft.
A practical garage bay may require approximately 12–15 ft of width for many standard lifts, although the final requirement depends on the lift width, vehicle size, door-opening space and working clearance.
Typical column heights range from approximately 9–15 ft. Floorplate lifts can use shorter columns, while overhead lifts generally require more height.
Many installations require roughly 10–15 ft or more, depending on lift structure, vehicle height and desired lifting height. The exact requirement must be confirmed from the selected lift drawing.
Enough clearance should be provided for vehicle entry, vehicle-door opening, lift-arm positioning, technician movement and safe operation. The exact clearance depends on garage layout and lift model.
Yes, provided the garage has sufficient width, ceiling height, concrete strength and vehicle clearance. Low-ceiling garages may be more suitable for certain floorplate or compact models.
Get a 2 Post Lift Size Recommendation
Not sure whether a 2 post lift will fit your garage?
Send Spaceplus your garage dimensions and vehicle information before purchasing.
Our team can help evaluate:
- Suitable lift width
- Suitable column height
- Ceiling clearance
- Vehicle compatibility
- Lift capacity
- Garage layout
- Concrete requirements
- Suitable 2 post lift configuration
Information to Provide
